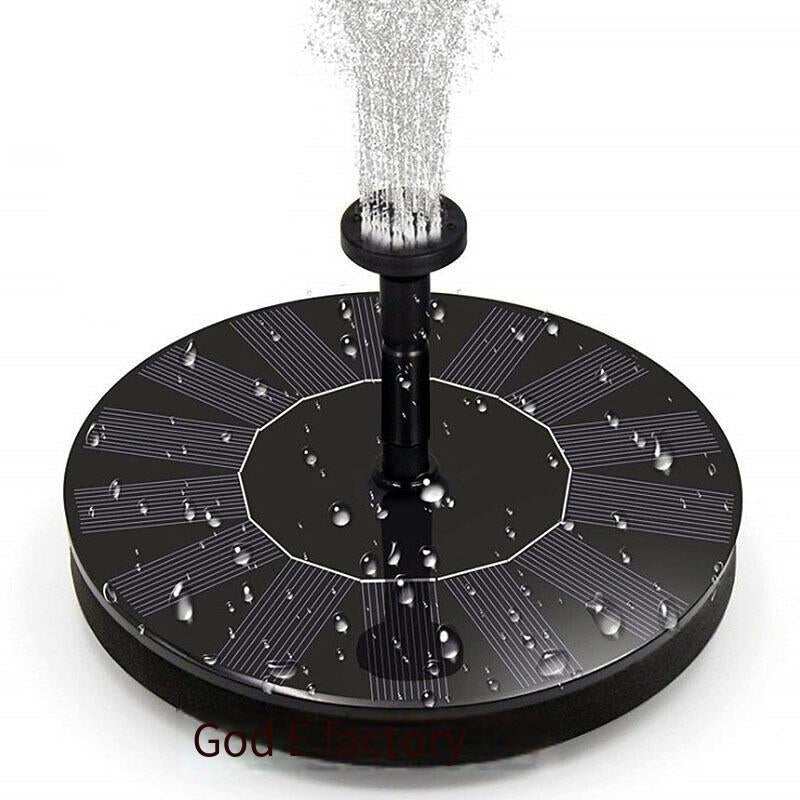

Solar Landscape Fountain Miniature Dc Brushless Water Pump Rockery Household Pool Garden Water Spray Fishpond Oxygen Direct Drive

Packing List

Solar panel specification：
Rated voltage：7V Rated power：1.4W  texture of material：single crystal
Pump specification：
working voltage ：DC 7V Working current：150MA High lift：100CM

Pump life：＞20000Time Pump noise：＜45DB Large flow：160L/H
Package size：
Inner box size ：170*165*36mm weight：230g
Product performance：
Spray height: 30--50cm，Connect different nozzles，The height of the water spray will be different。
When the solar panel receives enough sunlightTime，The water pump will be3Start in seconds。

Direct drive polygon with lotus pattern：

The solar brushless water pump adopts Hall elements with high sensitivity and low power consumption，With efficient and intelligent electronic circuit drive，The volute design in hydrodynamics is adopted for the impeller cavity，Reduce flow resistance，Thus, the comprehensive performance is higher than that of the traditional solar water pump20%。It also solves the difficulty of starting the brushless solar water pump，Low efficiency，Disadvantages of poor stability。

The water pump can be connected with nozzles of different shapes，Eject different water types。

Solar panel specification：

Rated voltage：7V

Rated work:1.4W

texture of material：single crystalsilicon，PETLamination

Pump specification：

working voltage ：DC 7V

Working current：165MA

High lift：100CM

Large flow：180L/H

Pump life：＞20000SmallTime

Pump noise：＜38DB

Package size：

Inner box size ：170*165*36mm weight：210g

2.5WStorage with lamp：

The solar brushless water pump adopts components with high sensitivity and low power consumption，With efficient and intelligent electronic circuit drive，The volute design in hydrodynamics is adopted for the impeller cavity，Reduce flow resistance，Thus, the comprehensive performance is higher than that of the traditional solar water pump20%。It also solves the difficulty of starting the brushless solar water pump，Low efficiency，Disadvantages of poor stability。The water pump can be connected with nozzles of different shapes，Eject different water types。

Product features：The solar floating fountain pump on the market is improved，Only in sunny areasTimeThe disadvantage of waiting for water to spray，Built in high performance polymer lithium battery，The battery can work when fully charged4-6SmallTime，You can charge and spray water during the day，Built in water level monitoring，When the bottom sensor does not touch the waterTimeIt can stop working automatically，Prevent the pump from idling, which has a great impact on the service life of the product, etc.Add night mode，When solar panels do not sense sunlightTimeNight mode will be activated，LEDThe lamp is the same as the water pumpTimework4SmallTime。

Solar panel specification：

Rated voltage：10V Rated power：2.5W texture of material：single crystal

Pump specification：

working voltage ：DC 10v Working current：135MA High lift：120CM

Large flow：210L/H Pump life：＞20000SmallTime Pump noise：＜45DB

Battery Specification：

Voltage：7.4V capacity：600mAh

Package size：

Outer box size：410*390*400mm Inner box size ：196*185*51mm Single weight：430g

Product performance：
Spray height: 30--70cm，Connect different nozzles，The height of the water spray will be different。When the solar panel receives enough sunlightTime，The water pump will be3Start in seconds。

usage method：
1）Assemble the product according to the schematic diagram。
2）Place the solar panel in a suitable place，Make sure that the light is not obscured by other objects。When the solar panel receives enough lightTime，The water pump is normalwork。
3）The water pump has just been put into the waterTime，There is air in it，May affect the effect of water spraying。It is recommended to wait until the water pump sprays normally，Then connect the nozzle。

matters needing attention：

1 This product is a solar direct drive water pump（Except for electricity storage），No additional battery，The height of the spray depends entirely on the strength of the sun，On a sunny dayTimeWaiting，The water pump will not be continuouswork，But it will start automatically and repeatedly，Until the sunlight reaches a certain intensity, the water pump will resume continuous operationworkstate。useTimePlease place the product in the sun，Shading will affect the normal operation of the water pumpwork。
2 The pump must be completely immersed in water，Not longTimeInter dehydrationwork。When the pump is just immersed in waterTime，Due to water pumpThere is air in it，It is recommended to wait until the water pump sprays normallyInsert the nozzle in the。
3 Please keep the water clean，Clean the water pump regularly，Prevent foreign matters from being sucked in by the water pump, resulting in abnormal operation of the water pumpwork。
